Products

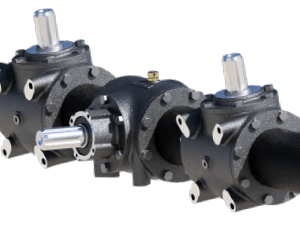

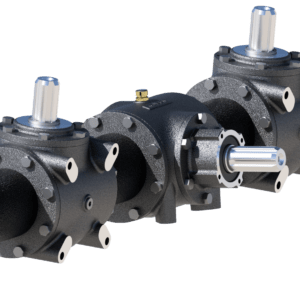

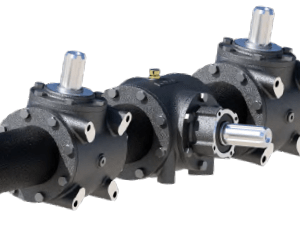

COBERG MS series drive axles are complete assemblies with three bevel gearboxes: a central input gearbox and two side gearboxes transmitting power to the spreader’s working elements.
| Model | Ratio | Input / output speed | Power | Torque | Weight |
|---|---|---|---|---|---|
| MS01.01 | 1.54:1 | 540 / 351 rpm | 45 kW / 60 HP | 1225 Nm | 130 kg |
| MS02.01 | 2.37:1 | 1000 / 422 rpm | 45 kW / 60 HP | 1020 Nm | 140 kg |
| MS03.01 | 2.37:1 | 1000 / 422 rpm | On enquiry | On enquiry | 140 kg |
The MS series is available in different lengths and configurations. Detailed drawings, dimensions and variant specifications are provided in the COBERG product catalogue (pages 46–48).
Specifications are taken from the COBERG catalogue, pages 46–48. Please enquire about MS03 power and torque, operating conditions, oil selection and the configuration for your machine.
We have updated the COBERG catalog to include our complete drive axle range. Download the full catalog to compare MS01–MS03 models, check mounting dimensions and select a variant for your machine. Drive axle details are on pages 46–48.
Download the updated catalog PDF
COBERG has its own dynamometer test rig for testing gearboxes and complete axles. We agree the variant and configuration with each customer to suit the machine’s requirements.
Explore our dynamometer test rig
