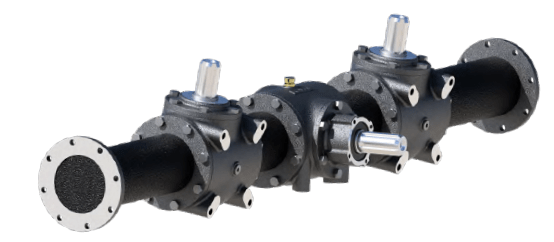

Gearbox MS02
Images:
Specifications:
| Code | MS02.01 |
|---|---|
| Ratio | 2,37:1 |
| IN | 1000 |
| OUT | 422 |
| kW | – |
| HP | – |
| Nm | – |
| Position | The rotation of the shafts depends upon the position of the gearbox |
| DŁUGOŚĆ/LENGTH – L | |||
|---|---|---|---|
| NAZWA | A | B | C |
| MS01.01 | 325 | 1400 | 375 |
| MS01.02 | 350 | 1500 | 400 |
| MS01.03 | 385 | 1710 | 470 |
| MS01.04 | 455 | 2000 | 545 |
| MS01.05 | 480 | 2100 | 570 |
| MS01.06 | 495 | 2200 | 605 |
| MS01.07 | 550 | 2380 | 640 |
Gearbox MS02
Images:
Specifications:
| Code | MS02.01 |
|---|---|
| Ratio | 2,37:1 |
| IN | 1000 |
| OUT | 422 |
| kW | - |
| HP | - |
| Nm | - |
| Position | The rotation of the shafts depends upon the position of the gearbox |
| DŁUGOŚĆ/LENGTH - L | |||
|---|---|---|---|
| NAZWA | A | B | C |
| MS01.01 | 325 | 1400 | 375 |
| MS01.02 | 350 | 1500 | 400 |
| MS01.03 | 385 | 1710 | 470 |
| MS01.04 | 455 | 2000 | 545 |
| MS01.05 | 480 | 2100 | 570 |
| MS01.06 | 495 | 2200 | 605 |
| MS01.07 | 550 | 2380 | 640 |
Gearbox MS02
Images:
Specifications:
| Code | MS02.01 |
|---|---|
| Ratio | 2,37:1 |
| IN | 1000 |
| OUT | 422 |
| kW | - |
| HP | - |
| Nm | - |
| Position | The rotation of the shafts depends upon the position of the gearbox |
| DŁUGOŚĆ/LENGTH - L | |||
|---|---|---|---|
| NAZWA | A | B | C |
| MS01.01 | 325 | 1400 | 375 |
| MS01.02 | 350 | 1500 | 400 |
| MS01.03 | 385 | 1710 | 470 |
| MS01.04 | 455 | 2000 | 545 |
| MS01.05 | 480 | 2100 | 570 |
| MS01.06 | 495 | 2200 | 605 |
| MS01.07 | 550 | 2380 | 640 |
| Przedłożenie | IN | OUT | kW | HP | Nm | Pozycja | Kod | |
|---|---|---|---|---|---|---|---|---|
| Ratio | Position | Code | ||||||
| 1:1 | 1:1 | 540 | 540 | 20 | 27 | 240 | Right output Down-Right |
C06.01 |
| Multi-plicator | 1:1.14 | 540 | 615 | 20 | 27 | 240 | Right output Down-Right |
C06.02 |
| 1:1.25 | 540 | 675 | 20 | 27 | 240 | Right output Down-Right |
C06.03 | |
| 1:1.3 | 540 | 702 | 20 | 27 | 240 | Double output Down-Left |
C06.04 | |
| 1:1.35 | 540 | 729 | 20 | 27 | 240 | Double output Down-Left |
C06.05 | |
| 1:1.4 | 540 | 756 | 20 | 27 | 240 | Double output Down-Left |
C06.06 | |
| 1:1.46 | 540 | 788 | 20 | 27 | 240 | Left output Down-Left |
C06.07 | |
| 1:1.5 | 540 | 810 | 20 | 27 | 240 | Left output Down-Left |
C06.08 | |
| 1:1.66 | 540 | 896 | 20 | 27 | 240 | Left output Down-Left |
C06.09 | |
